Vital 2

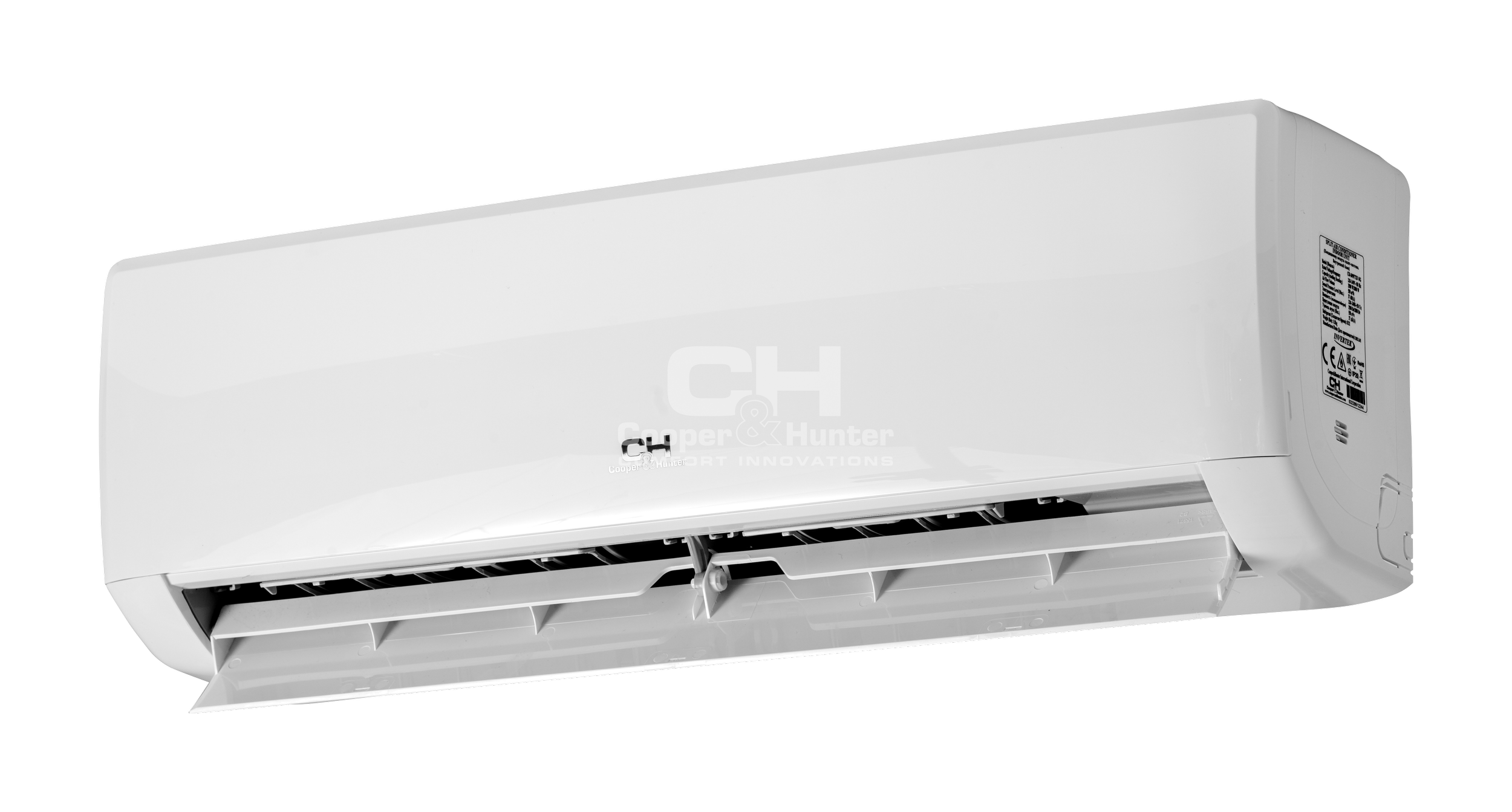

Vital Inverter 2 is a modern and stylish 6th generation device. The minimalist white panel, compact dimensions and a number of proven solutions mean that air conditioners from this series are able to discreetly provide comfort in a given room.
I FEEL function
Heating function +8°C
Dehumidification function
Hot start function
TURBO mode
Timer
Air ionizer
Built-in WiFi (ability to control the device using the application)
WIFI
R32
Heating to -15 °C
Features and functions
Blue Fin Coating
The outdoor unit exchanger is equipped with an anti-corrosion coating that extends its service life.
CH7 Filter
CH7 Filter
Silent operation function
The unit operates more quietly with reduced fan speed and automatic settings
Clock
The current time can be displayed on the remote control.
Air ionizer
Effectively cleans the air from harmful microorganisms and unpleasant odors
Wi-Fi function
It allows you to remotely control the device using a dedicated application
Vertical movement of the blinds
The louvers move vertically to evenly distribute air and temperature in the room
Compact design
The smaller dimensions of the unit facilitate installation and transportation, as well as reduce maintenance costs.
Multiple fan speeds
Thanks to the wide range of fan speeds, the device can adjust its speed to current needs and conditions.
Power saving function
When this function is active, the temperature settings are limited to save energy.
Washable air filter
Filters are easy to remove and reinstall
Comfortable night mode
With this option, the user can significantly reduce the noise level during sleep by setting the fan speed to low.
Hot start function
The indoor unit in heating mode will start blowing air when a sufficiently high temperature is reached
Heating 8°C
The function of maintaining a positive temperature in rooms where there is no need to maintain a higher temperature
I FEEL function

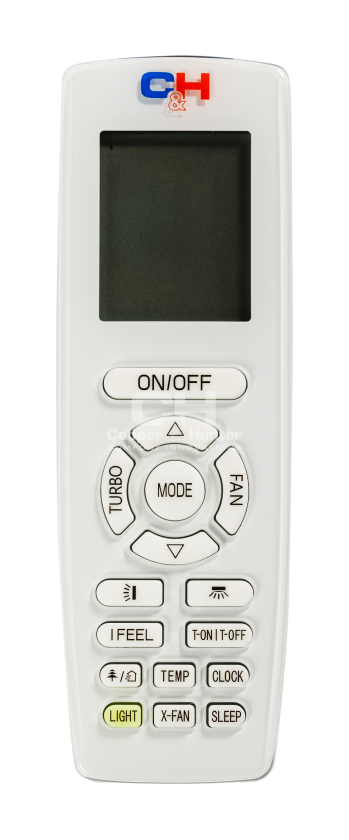

The sensor installed in the remote control senses the ambient temperature, sending a signal to the indoor unit so that it can control the air flow and temperature.
Technical data
| MODEL | CH-S09FTX2-NG | CH-S12FTX2-NG | CH-S18FTX2-NG | CH-S24FTX2-NG |
|---|---|---|---|---|
| Power supply | 220-240V~50Hz/1 phase | 220-240V~50Hz/1 phase | 220-240V~50Hz/1 phase | 220-240V~50Hz/1 phase |
| COOLING | ||||
| Nominal capacity (kW) | 2.70 | 3.20 | 4.60 | 6.20 |
| Nominal power consumption (W) | 725 | 916 | 1340 | 1912 |
| Working current (A) | 3.45 | 4.05 | 5.90 | 7.60 |
| EER | 3.72 | 3.23 | 3.43 | 3.24 |
| Annual energy consumption (kWh/year) | 139 | 184 | 251 | 319 |
| SEER | 6.80 | 6.10 | 6.10 | 6.20 |
| Energy class | A++ | A++ | A++ | A++ |
| WARMING | ||||
| Nominal capacity (kW) | 2.80 | 3.40 | 5.20 | 6.50 |
| Nominal power consumption (W) | 685 | 916 | 1340 | 1912 |
| Working current (A) | 3.19 | 4.05 | 5.80 | 7.60 |
| COP | 4.09 | 3.71 | 3.88 | 3.40 |
| Annual energy consumption (kWh/year) | 867 | 945 | 1285 | 1645 |
| SCOP | 4.20 | 4.00 | 4.00 | 4.00 |
| Energy class | A+ | A+ | A+ | A+ |
| Wi-Fi communication | +/- | + | + | + |
| COOLING PIPES | ||||
| Liquid/gas (mm(inch)) | Ø6.38/Ø9.53 (1/4"/3/8") | Ø6.38/Ø9.53 (1/4"/3/8") | Ø6.38/Ø9.53 (1/4"/3/8") | Ø6.38/Ø12.70 (1/4"/1/2") |
| Refrigerant quantity (kg) | 0.50 | 0.55 | 0.75 | 1.23 |
| Additional amount of agent (g/m) | 16 | 16 | 16 | 16 |
| Standard installation length (m) | 5 | 5 | 5 | 5 |
| Maximum length (m) | 15 | 20 | 25 | 25 |
| Maximum height difference (m) | 10 | 10 | 10 | 10 |
| RECOMMENDED ELECTRICAL CABLES AND PROTECTION | ||||
| Powered unit/section (mm²) | external/3x2.5 | external/3x2.5 | external/3x2.5 | external/3x2.5 |
| Communication (mm²) | 4x1.0 | 4x1.0 | 4x1.0 | 4x1.0 |
| Safeguard (A) | 16 | 16 | 16 | 16 |
| Outdoor unit operating temperature ranges: cooling/heating (°C) | -15~43/-15~24 | -15~43/-15~24 | -15~43/-15~24 | -15~43/-15~24 |
| INDOOR UNIT | CH-S09FTXF2-NG | CH-S12FTXF2-NG | CH-S18FTXF2-NG | CH-S24FTXF2-NG |
|---|---|---|---|---|
| Dimensions (W x D x H) (mm) | 773x185x250 | 773x185x250 | 970x225x300 | 970x225x300 |
| Transport dimensions (W x D x H) (mm) | 817x244x306 | 817x244x306 | 1017x285x366 | 1017x285x366 |
| Net/gross weight (kg) | 8.5/9.5 | 8.5/9.5 | 13.5/16.0 | 13.5/16.0 |
| Air flow (m³/h) | 280/310/340/400/480/520/550 | 280/320/350/400/480/520/590 | 600/700/800/850 | 400/600/800/900 |
| Sound pressure level - Cooling (dB(A)) | 21/26/29/33/35/37/40 | 24/26/30/33/35/37/41 | 31/32/42/44 | 30/37/41/45 |
| Sound pressure level - Warming (dB(A)) | 24/26/30/33/35/37/40 | 25/28/31/33/35/37/41 | 34/41/46/48 | 26/37/45/48 |
| OUTDOOR UNIT | CH-S09FTXF2-NG | CH-S12FTXF2-NG | CH-S18FTXF2-NG | CH-S24FTXF2-NG |
|---|---|---|---|---|
| Dimensions (W x D x H) (mm) | 732x330x555 | 732x330x555 | 732x330x555 | 873x376x555 |
| Transport dimensions (W x D x H) (mm) | 791x373x590 | 791x373x590 | 791x373x590 | 948x428x591 |
| Net/gross weight (kg) | 24.5/27.0 | 25.0/27.5 | 26.5/29.0 | 36.5/39.5 |
| Air flow (m³/h) | 1950 | 1950 | 1950 | 3200 |
| Sound pressure level (dB(A)) | 51 | 52 | 55 | 57 |
